QINGDAO PERMIX MACHINERY CO., LTD FOCUSING ON MATERIAL MIXING!
6 Years
| Ask Lasest Price | |
| Brand Name : | PERMIX |
| Model Number : | PMC500 |
| Certification : | CE |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5-10 units per month |
| Delivery Time : | 15-20 days |
Simple Structure PMC750 Counter Current Planetary Mixer No Hidden Corners
1.

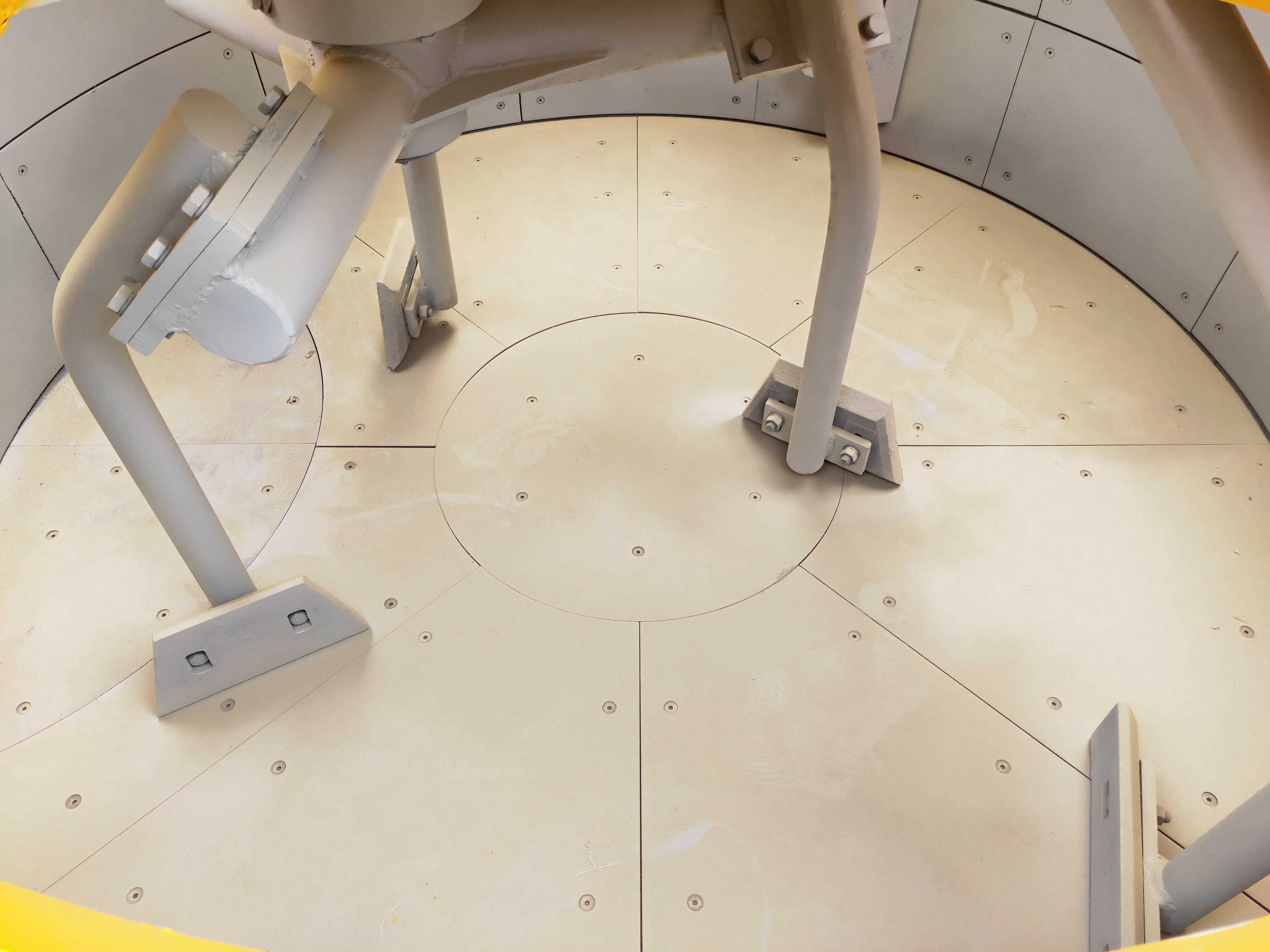

Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) highchrome alloy.
(2) ceramic materials
(3) polyurethane material.
(4) surfacing materials.
(5) stainless steel materials.
(6) wear - resistant alloy plates.
(7) high wear resistant rubber and cast stone materials.
2.
APPLICATION INDUSTRIES
1. Pot Clay,
2. Ceramics,
3.Glass Raw Material,
4. Casting materials: Sand mixing, Casting coatings,
5. Refractories: unshaped refractories,refractory bricks,
6. Concrete
Precast concrete: various block bricks, sleepers, metro tunnel segments, track slabs,PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement slurry, polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
Others
3.
Maintaining Door
Large size maintaining door for easy maintenance and cleaning.The safety control device ensures that the mixer will not start during maintenance.
4.
Transmission System
The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation. The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) | PMC 50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1250 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm | 950* 790* 1200 | 1664* 1453* 1487 | 1670* 1460* 1620 | 1860* 1650* 1780 | 1870* 1870* 1855 | 2230* 2080* 1880 | 2580* 2340* 2195 | 2891* 2602* 2237 | 3058* 2756* 2395 | 3223* 2902* 2470 | 3625* 3230* 2695 | 3893* 3550* 2875 | 3893* 3550* 3085 | 4594* 4150* 3634 |
|
|
